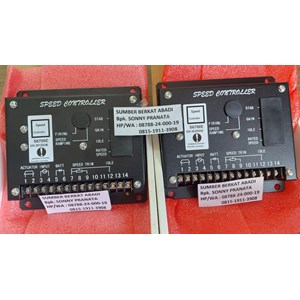

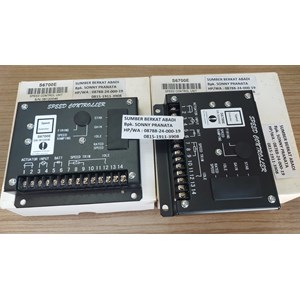

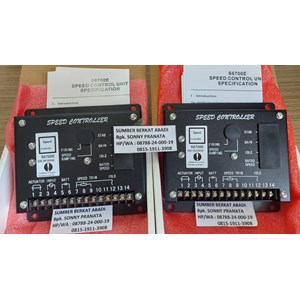

GOVERNOR SPEED CONTROL UNIT S6700E S 6700 E S 6700E

GOVERNOR SPEED CONTROL UNIT S6700E S 6700 E S 6700E

- The S6700E Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes.
- The basic characteristics of this unit S6700E is to reach rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate.
- The S6700E speed control Unit provides a series of protection once the power supply is reversely connected. Transient over voltage or actuator fault happens, or Speed input breaks.
- S6700E Speed Control Unit Engine Governor Controller for Diesel Generator Genset

Electronic Motor Speed Governor Speed Control Board S6700E
The S6700E Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control. The basic characteristics of this unit is to reach rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate. The S6700E speed control Unit provides a series of protection once the power supply is reversely connected. Transient over voltage or actuator fault happens, or Speed input breaks.

Power reverse connection protection
Actuator default protection
Speed signal Lose protection
Over-speed & External high Level input Alam

S6700E Speed Controller
Environmental
Ambient operating temperature range: - 40 ~ 85 °C
Relative humidity: 95%

Input Power :
Supply = 24VDC
Actuator current range = 2.5-10A(continuous)
Speed sensor signal = 1-20v

Characteristics :
- Speed fine adjustment range: ± 100% r / min
- Frequency fluctuation: ± 0.25%
- Steady speed droop: 0~3% (variable)
- Temperature drift: ± 1% (maximum)

speed control
